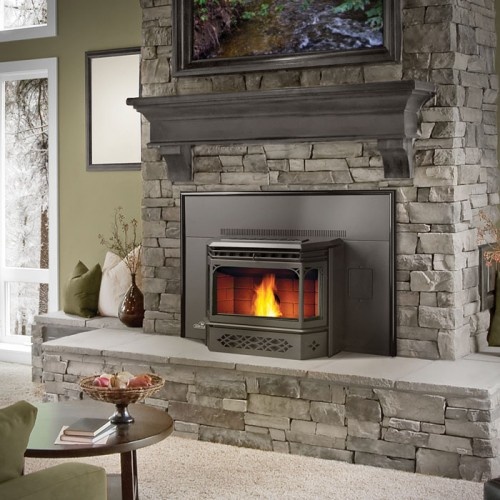

Napoleon NP145


PRODUCT SPECIFICATIONS

Model Pellet Insert – NPI45
BTU’s (Heat Input) 8,500 – 42,500
Hopper Capacity 45 lbs.
Area Heated (sq. ft.)** Up to 2,000
Burn Rate (lbs./hr)* 1-5
Burn Time (Low Burn) Up to 45 hours
Outlet Diameter
 3″
Electrical Rating Volts Amps Hz
115 3.6 60
Heat Circulating 120 CFM Blower Included
Outside Air Kit Optional
Mobile Home Certified Yes
Blower Kit Available Height Width Depth
32 5/8″ 14 1/4″ 20 5/8″
Certified under Canadian and American National Standards

*Small pellets will increase or decrease the stated burn rates and burn times. Differences of +/- 20% may occur depending on fuel quality.

**Figures may vary with individual conditions such as floor plan layout, insulation value/heat loss of the house and geographical location.

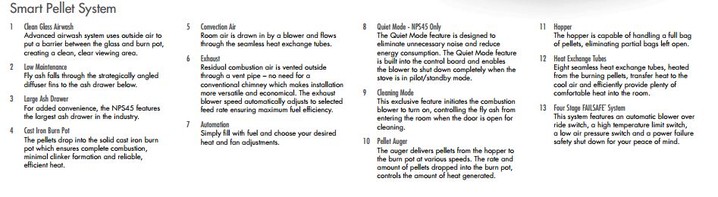

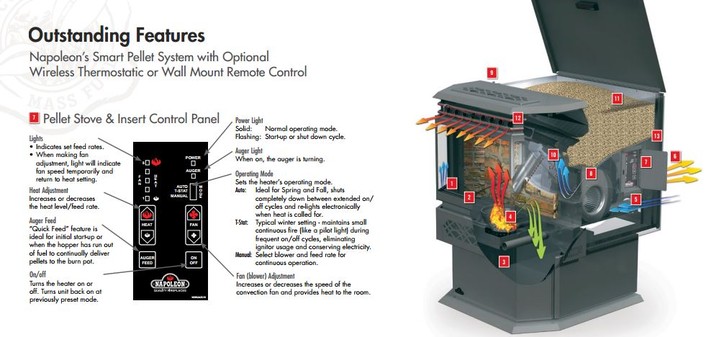

PRODUCT FEATURES

  • EPA exempt
  • Convenient top, loading for easy fueling
  • Automatic ignition
  • Insert hopper pellet capacity is 45 lbs. (capable of handling a full bag of
    pellets eliminating partial bags left open)
  • Variable speed auger and variable speed blower provide maximum comfort and control
  • Heavy-duty, 1/8” thick, seamless heat exchange tubes radiate heat into the room for maximum efficiency even after the insert is shut down
  • Hinged door for convenient access to combustion chamber for routine maintenance…
    no tools required!
  • Handy cleaning/filling rake
  • Four stage FAILSAFE™ system features:
    1) an automatic blower over-ride switch
    2) a high temperature limit switch
    3) a low air pressure switch
    4) a power failure safety shut down for your peace of mind
  • Thermostatic control capability via wall mount or easily installed hand-held thermostatic remote control
  • Digital control provides adjustment to both the fuel feed rate and combustion blower speed. This unique feature maximizes the insert’s performance when using lesser quality fuel. Even low grade fuel (although not recommended) can be burned in the NPI45 due to it’s ability to fine tune the fuel combustion air ratio
  • Built-in heat exchange cleaner rod maintains cleanliness and efficiency of heat exchange tubes
  • Effective clean glass airwash system
  • NPI45 can be top or rear vented and may also be installed as a zero clearance model in a framed cavity, without the use of additional shielding
  • Optional outside air kit with through the wall vent
  • Optional decorative ceramic PHAZER® log set
  • President’s Limited Lifetime Warranty
